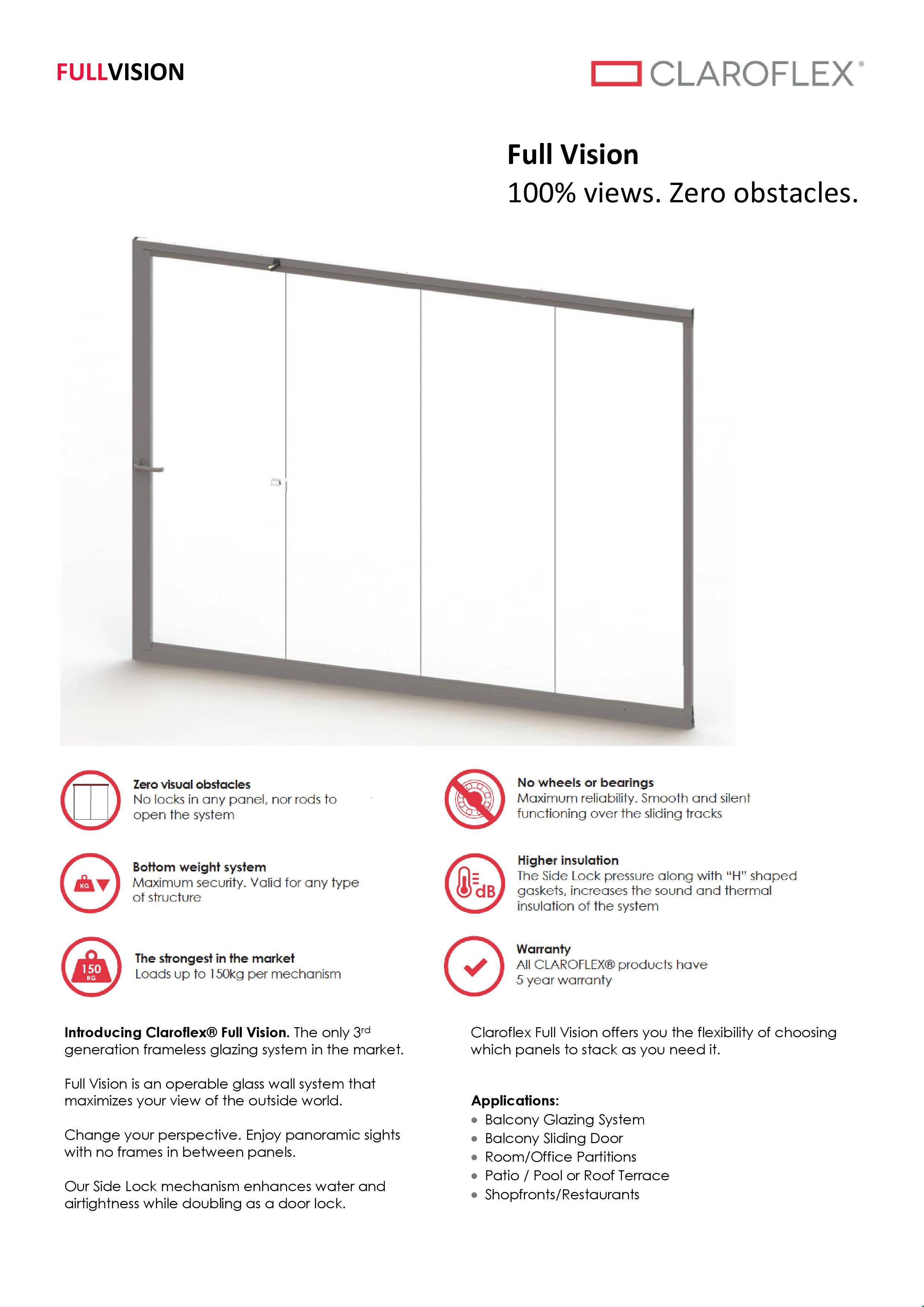

Claroflex® Full Vision

| Stackable Frameless Glazing System |

Unobstructed Vision. Spectacular Views.

Claroflex Full Vision is the premier frameless glazing system in the market. The system has no vertical frames or hardware between panels making it perfect for those looking to maximize views from their home, office or shop front. With no wheels or bearings, it is practically maintenance free!

Configuration:

  • Aluminium Main Top & Bottom Track
  • Glass Door Panels with Top and Bottom Clamps
  • 304 Stainless Steel Hinges

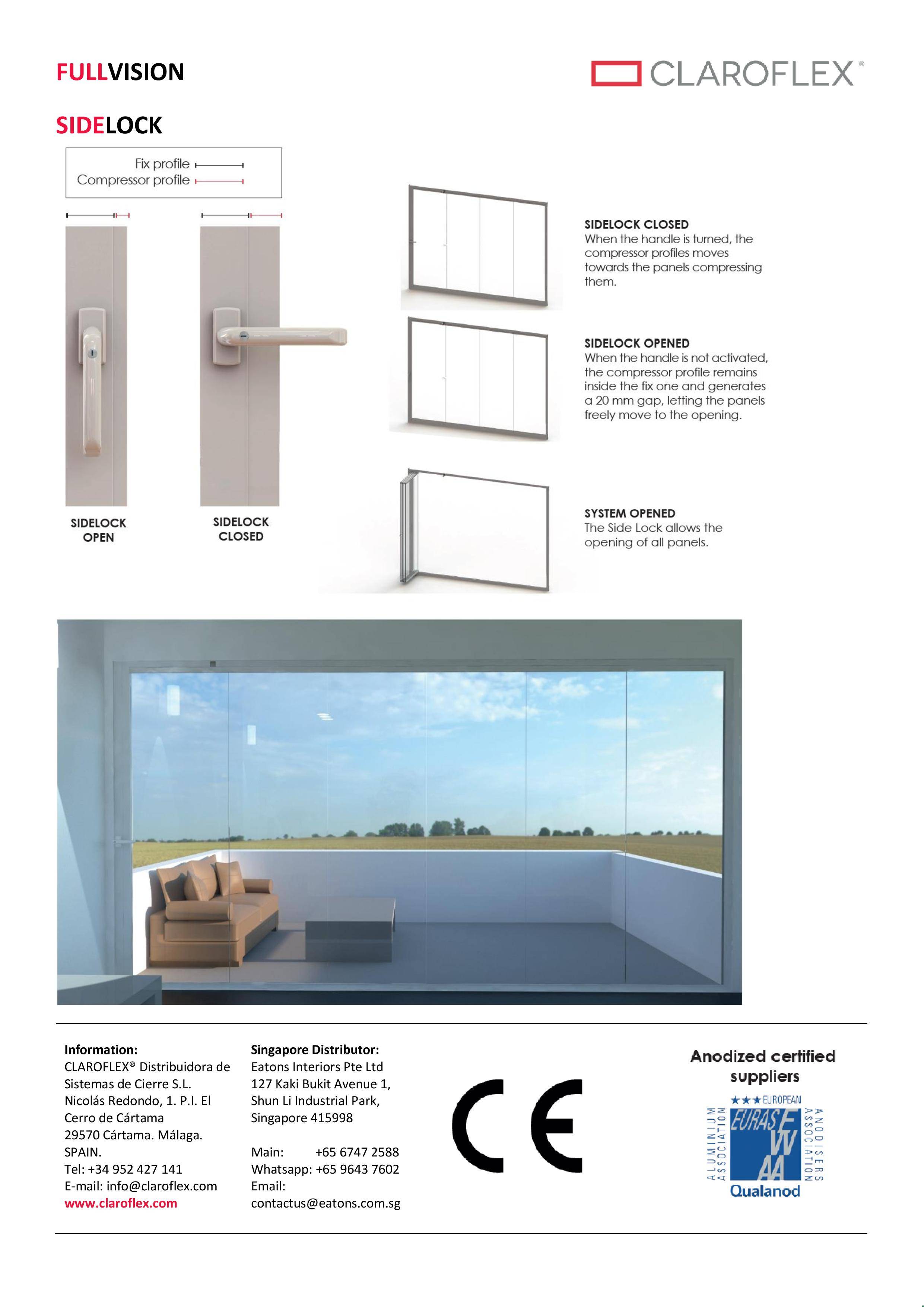

  • Side Lock
  • Clip Seals (To cover gaps between the glass panels)

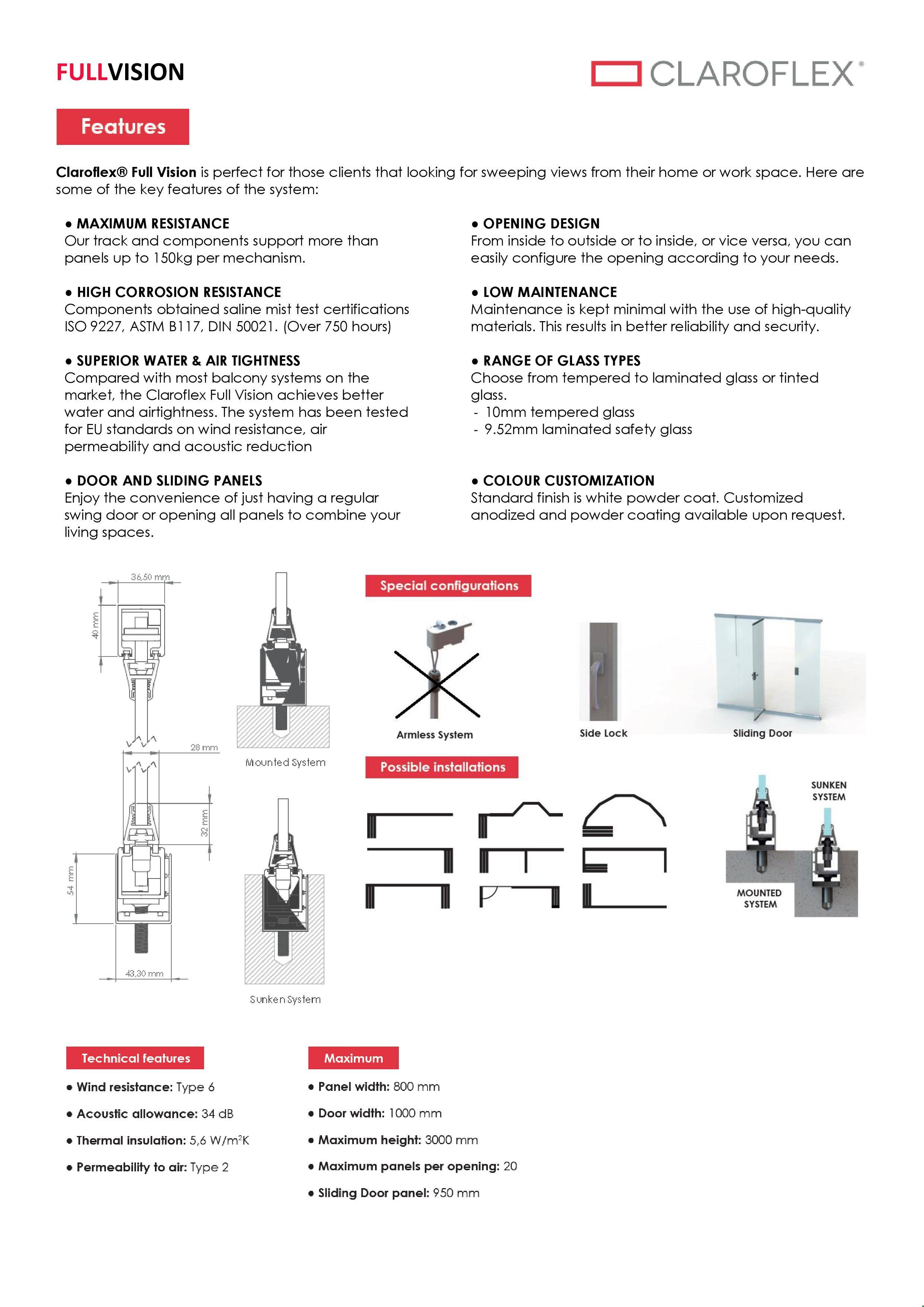

Features:

  • Weight transmitted to the floor without bearings
  • Surface mounted or sunken bottom tracks.
  • Panels move through corners between 90º and 270º.
  • End caps for panel profiles
  • Finishings: Anodized, lacquered and wood-like coatings.

Usage:

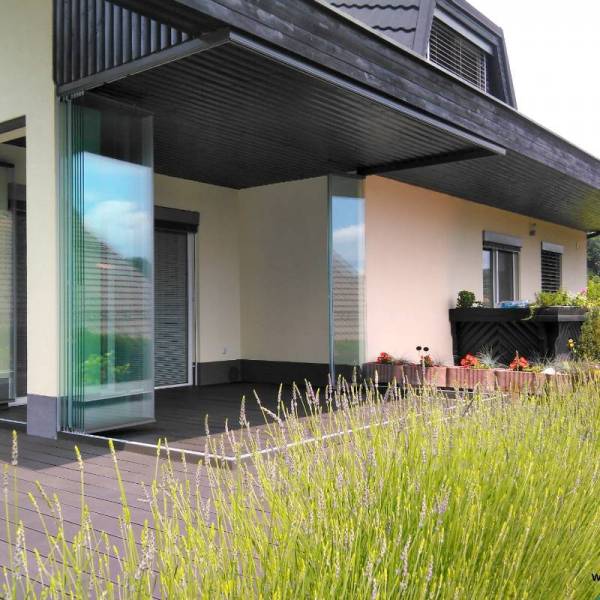

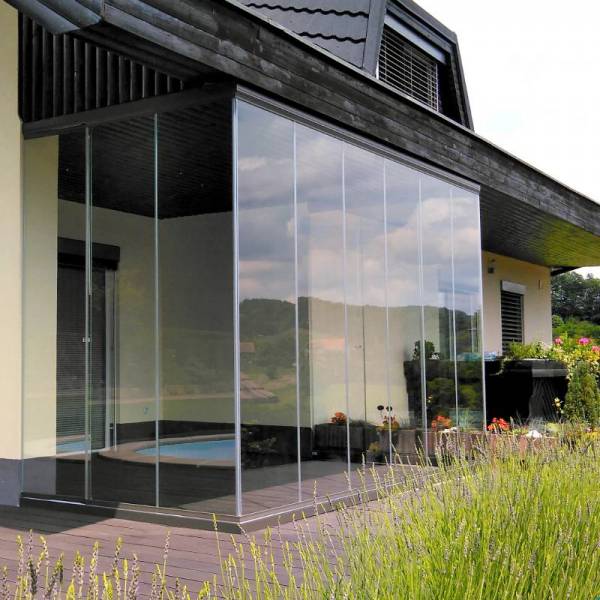

  • Balcony Glazing

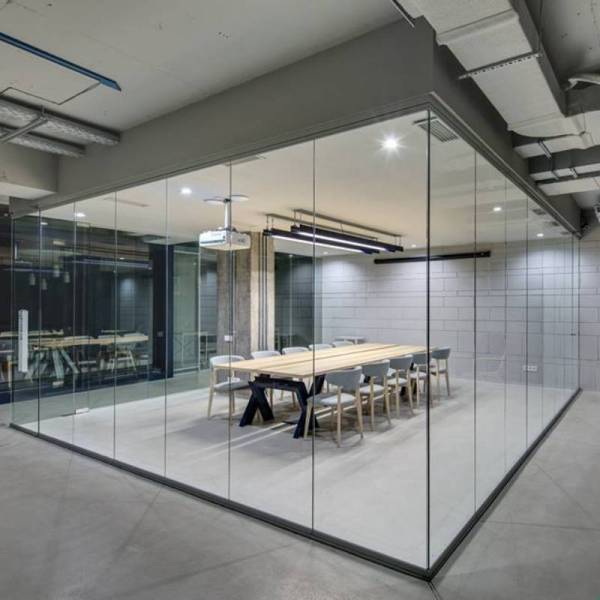

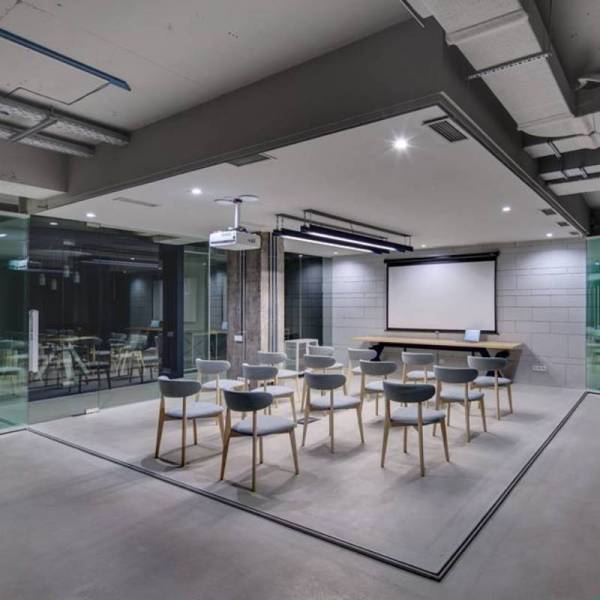

  • Room/Office Partitions
  • Balcony Doors
  • Shopfronts
  • Patio / Roof Terrace
  • Restaurants

Glass Options:

  • 10mm Clear Tempered Glass
  • 9.52mm Laminated Tempered Glass

Further Customizations:

  • Tinted glass is available upon request
  • Customize the system with your desired colors for the main track and panel clamps​

Other Information:

  • Also available in many other configurations
  • Additional wall or ceiling works may be required to bridge gaps for uneven surfaces
  • Test Certificates: Claroflex Full Vision has achieved European CE certification for the following test standards:
    • UNE-EN 1026:2017. Windows & doors. Air Permeability
    • UNE-EN 1027:2017. Windows & doors. Water tightness
    • UNE-EN 12211:2017. Windows & doors. Resistance to wind load
  • Claroflex Full Vision achieves 95% water tightness performance. It is not a replacement for aluminium windows. Some water leakage may be inevitable under certain conditions.



Claroflex Full Vision Brochure - Eatons 01

Claroflex Full Vision Brochure - Eatons 01

Claroflex Full Vision Brochure - Eatons 01

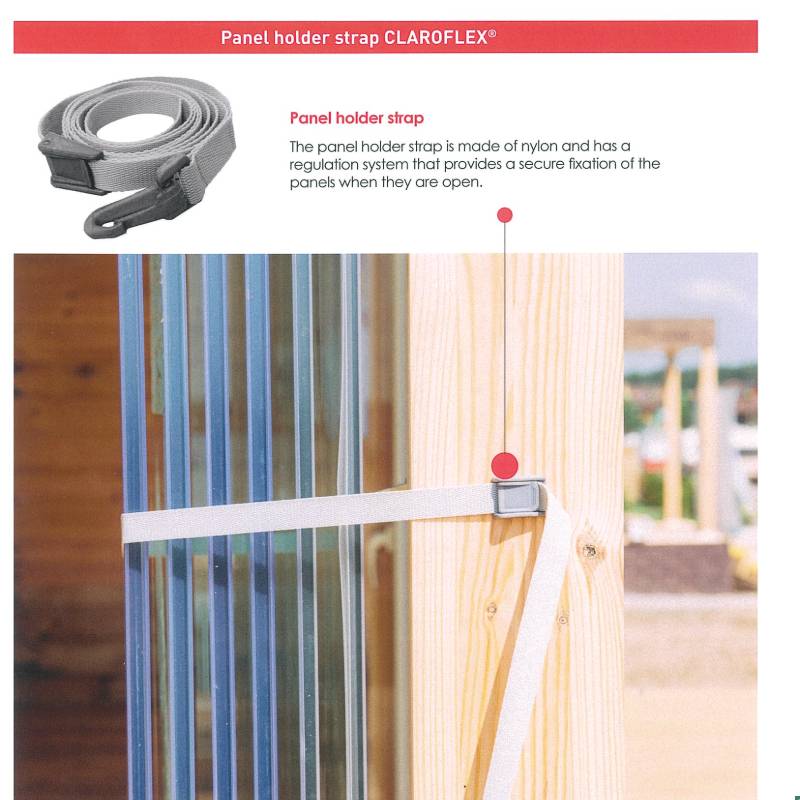

Claroflex Brochure - Panel Strap
