Claroflex® Full Vision Mini

| Stackable Frameless Glazing System for Low Thresholds |

Unobstructed Vision. Spectacular Views.

Claroflex Full Vision is the premier frameless glazing system in the market. The Full Vision Mini brings the best of the standard system into indoor areas! With a new low profile bottom track, this system can be installed in locations previously unsuitable without excessive hacking. It is the only one of its kind on the market. The Full Vision mini system has no vertical frames or hardware between panels making it perfect for those looking to maximize views from their home, office or shop front. With no wheels or bearings, it is also practically maintenance free!

Configuration:

  • Aluminium Main Top & Bottom Track
  • Glass Door Panels with Top and Bottom Clamps
  • 304 Stainless Steel Hinges
  • Side Lock
  • Clip Seals (To cover gaps between the glass panels)

Features:

  • Weight transmitted to the floor without bearings

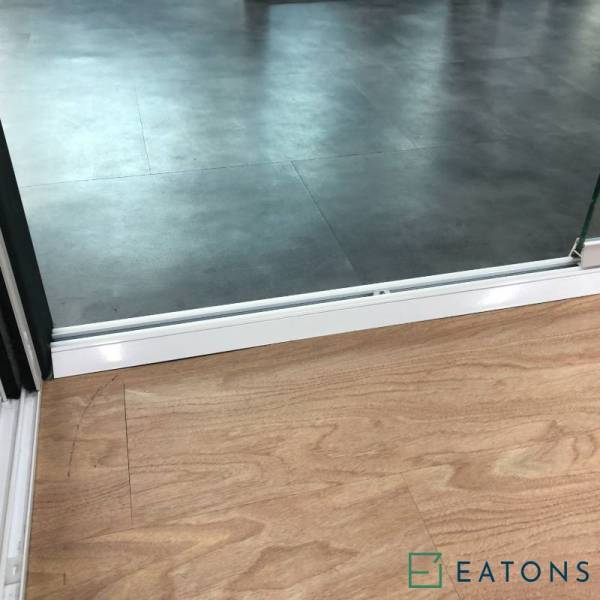

  • Surface mounted or sunken bottom tracks. Low bottom track height. Suitable for indoor use.
  • Panels move through corners between 90º and 270º.
  • End caps for panel profiles
  • Finishings: Anodized, lacquered and wood-like coatings.

Usage:

  • Balcony Glazing
  • Room/Office Partitions
  • Balcony Doors
  • Shopfronts
  • Patio / Roof Terrace
  • Restaurants

Glass Options:

  • 10mm Clear Tempered Glass
  • 9.52mm Laminated Tempered Glass

Further Customizations:

  • Tinted glass is available upon request
  • Customize the system with your desired colors for the main track and panel clamps​

Other Information:

  • Also available in many other configurations
  • Additional wall or ceiling works may be required to bridge gaps for uneven surfaces
  • Test Certificates: Claroflex Full Vision has achieved European CE certification for the following test standards:
    • UNE-EN 1026:2017. Windows & doors. Air Permeability
    • UNE-EN 1027:2017. Windows & doors. Water tightness
    • UNE-EN 12211:2017. Windows & doors. Resistance to wind load
  • Claroflex Full Vision achieves 95% water tightness performance. It is not a replacement for aluminium windows. Some water leakage may be inevitable under certain conditions.

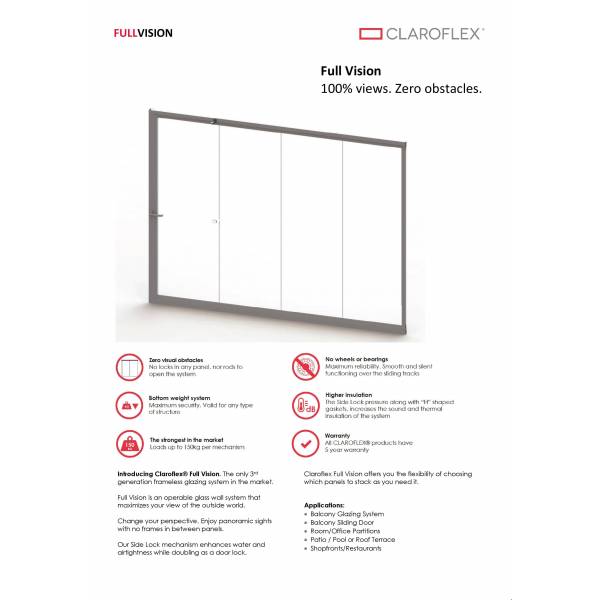

Claroflex Full Vision Brochure - Eatons 01

Claroflex Full Vision Brochure - Eatons 01

Claroflex Full Vision Brochure - Eatons 01
